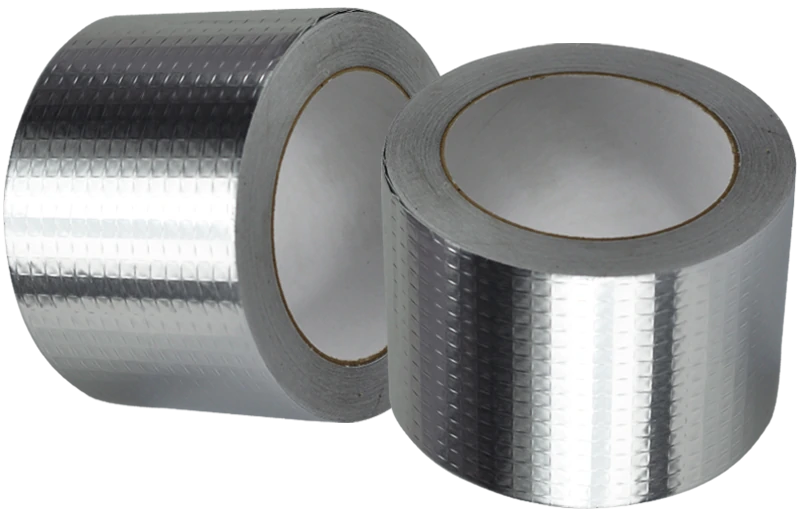

Aluminum Foil Tape Description



HVAC Aluminum Duct Tape is used in heating, ventilation, and air conditioning (HVAC) systems for various sealing and repair tasks. These aluminum foil tapes offers a durable bond at low and high temperatures. Its conformable backing and pressure sensitive adhesive ensure it sticks effectively to various smooth and uneven surfaces without compromising its adhesive qualities.

HVAC Aluminum Duct Tape is compatible with a wide range of HVAC materials, such as metal ducts, fiberglass insulation, rigid foam boards, and flexible ductwork. It adheres well to these surfaces, providing a reliable and long-lasting seal. Application to ductwork and other HVAC components is straightforward.

Tape Applications:

  • Sealing: Primary uses of HVAC aluminum duct tape is to seal joints, seams, and connections in HVAC ductwork.
  • Insulation: The Aluminum tape can also be used for insulation purposes in HVAC systems.
  • Repair: The tape may to seal minor damages and prevent air leakage until a more permanent repair can be made.

Tape Features:

  • Moisture Resistance: The aluminum foil backing of the tape provides a moisture barrier, making it resistant to water, humidity, and condensation.
  • Adhesive Strength: Aluminum foil tape is equipped with a strong adhesive that ensures a secure and long-lasting bond when applied to various surfaces.
  • Flexibility: The flexibility of tape allows it to conform to irregular shapes, bends, and contours of ductwork, making it versatile for various sealing and repair applications.
  • Tear Resistance: The tape is durable and tear-resistant, making it suitable for withstanding mechanical stress, handling, and pressure during installation.
  • UV Resistance: These tapes are designed to be UV-resistant, providing protection against ultraviolet (UV) rays when exposed to sunlight.

Aluminum Foil Tape Technical Data

Tape Properties:

PROPERTIES

METRIC

ENGLISH

TEST METHOD

Backing Thickness

22 Micron

0.88Mil

PSTC-133 / ASTM D 3652

Total Thickness

55 Micron

2.2 Mil

PSTC-133 / ASTM D 3652

Adhesion to Steel

18N/25mm

65Oz./In.

PSTC-101 / ASTM D 3330

Tensile Strength

40 N/25mm

9.1Lb/In

PSTC-131 / ASTM D 3759

Elongation

3.0%

3.0%

PSTC-131 / ASTM D 3759

Service Temperature

-20℃ to +80℃

-4℉ to +176℉



Applying Temperature

-10℃ to +40℃

+50℉ to +105℉



Tape Roll Size:

Finish Roll:

50mm x 50m 2” x 55yds
75mm x 50m 3” x 55yds
Log Roll: 1020mm x 50m
Jumbo Roll: 1020mm x 3000m
