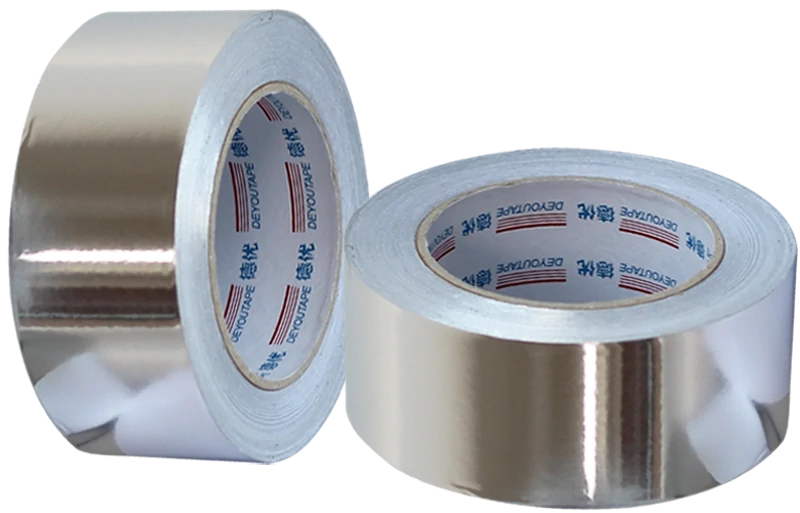

Aluminum Foil Tape Description



Aluminum foil tape acrylic adhesive 25um (0.98Mil).

High strength aluminum foil tape 25um(0.98Mil) for joining and sealing joints, connections and seams on rigid fiberglass ductboard and flexible air duct, can also be used in place of mechanical fasteners on rigid ductboard. Full system closure by forming airtight bonds on joints and seams in temperatures ranging from -20 F to 260 F and in humid conditions.

These aluminum foil tapes can also be used for sealing the joints of various metal materials, sealing the punctures of insulation nails and mending the leakage of broken places. It is an indispensable material for the production of refrigerators and freezers, and an important raw material for insulating refrigeration equipments and heating ducts.

Tape Applications:

1. Sealing seams and joints: 25um aluminum foil tape can be used to seal seams and joints in boats, ships, and other marine vessels.
2. Insulating electrical components: 25um aluminum foil tape can be used to insulate electrical components from water, salt, and other harsh conditions.
3. Protecting surfaces from corrosion: 25um high strength aluminum foil tape can be used to protect surfaces from corrosion.

Tape Features:

Conformable tape resists flames, moisture, weather, UV degradation, and many chemicals.

Highly engineered acrylic adhesive provides long term durability, but removes cleanly after harsh masking applications.

Dead soft aluminum foil backing conforms to curved and uneven surfaces.

Withstands exposure to flame, weathering, moisture and UV.

Aluminum Foil Tape Technical Data

Properties:

PROPERTIES METRIC ENGLISH TEST METHOD
Backing Thickness 25Micron 0.98Mil PSTC-133 / ASTM D 3652
Total Thickness 55 Micron 2.2 Mil PSTC-133 / ASTM D 3652
Adhesion to Steel 18N/25mm 65Oz./In. PSTC-101 / ASTM D 3330
Tensile Strength 40 N/25mm 9.1Lb/In PSTC-131 / ASTM D 3759
Elongation 3.0% 3.0% PSTC-131 / ASTM D 3759
Service Temperature -30℃ to +150℃ -22℉ to +302℉
Applying Temperature -10℃ to +40℃ +50℉ to +105℉

Roll Size:

Finish Roll:

50mm x 50m

2" x 55yds

75mm x 50m

3" x 55yds

Log Roll:

1020mm x 50m

Jumbo Roll:

1020mm x 3000m
